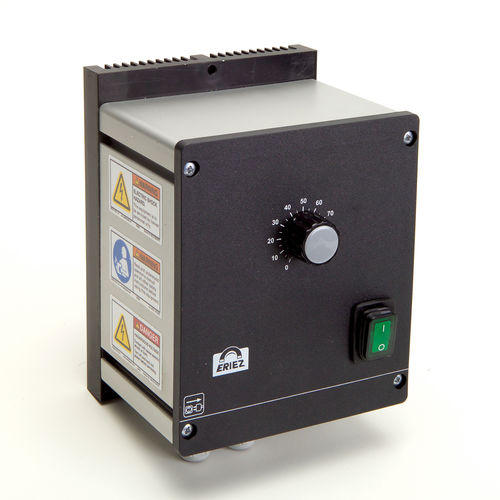

Vibration controller UniCon

The single base model UniCon replaces many older style controls and offers more features. Its compact design and standard features address most customer applications. The unit is packaged in a NEMA12 (IP54) enclosure and carries CE, CUL and UL certification while the chassis enclosed model is CE certified. It can be configured for either 115V or 240V operation, full or half wave output operation and can be operated either from a manual potentiometer on the front of the control box or an internal 4-20mA or 0-10V DC signal. Features: Easy to use, economical, variable speed control Rotary dial controls speed and feed rate Chassis mount, NEMA 12 (IP54) enclosure standard Operates on 115 or 240 volts Rated from 2 to 15 amps at 115 volts and 1 to 15 amps at 240 volts Includes bias and gain internal pots to set the operating (displacement) range of feeder. Sets span of the pot on lid Accepts 4-20 MA or 0-10 VDC signals Include interlock for remote on/off Full wave and Half wave capable NEMA 12 version: UL, CUL, and CE tagged; Chassis version: CE tagged Recommended for: Compact Electromagnetic Feeders / Conveyors (A Model, C Model, H Speed, HS Model) Large Electromagnetic Feeders (B Model) Bin Vibrators (115 and 230 Volt)
