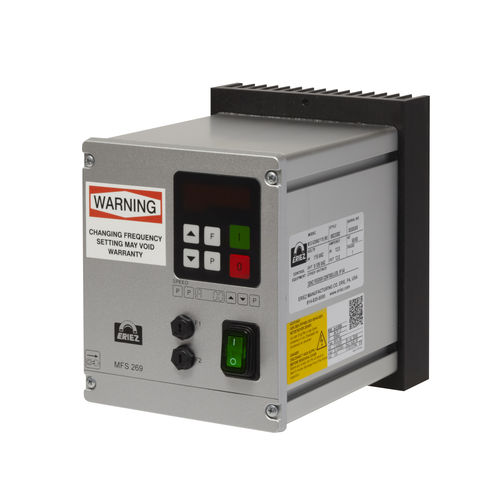

Vibration controller G

Accepts up to 12 amps at full voltage. Controls are capable of auto sensing line voltage without on site programming and can operate at feeders frequencies of 30, 40, 50 or 60 Hz. The G-Series is equipped with soft-start adjustability which eliminates the feeder over-stroking during start up and shut down and prevents premature wear. For applications requiring rapid on/off cycling, settings can be altered for quicker cycle time. Controls can be equipped with an accelerometer attached to the feeder. The accelerometer constantly reads the tray amplitude and communicates it to the control thereby preventing premature component wear. Features: Full range of customized feeder controls 115 and 230 volts Nema 12 (IP54) enclosure standard Accept 4-20 MA signal Remote on/off capability Dual rate-of-feed available Panel mount version Closed-Loop operation with accelerometer available to maintain consistent tray deflection Standard units are CE tagged ESA evaluation and tagging for Canada available Digital display 12 amp maximum for NEMA 12 version and 15 amp maximum for NEMA 4x and panel mount Recommended for: Compact Electromagnetic Feeders / Conveyors (A Model, C Model, H Deflection, HS Speed, VMC Conveyor) Large Electromagnetic Feeders (B Model)
