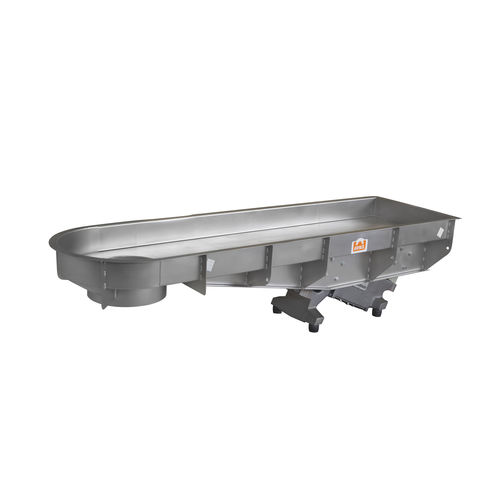

Vibrating feeder HD

electromagneticpowderfor bulk materials

Eriez' unique Hi-Vi magnetic drive circuit provides a simple yet powerful solution to difficult material feeding applications. These feeders, with their totally enclosed patented magnetic drive, can feed practically any bulk material from micron size to bulky chunks. Solid-state controls operate the feeders with “watch–like” precision. In addition, you get all the features that for years have made Eriez Feeders the leaders in quality and dependability. Eriez has standard models for the majority of feeding applications. Special units such as multiple drives, enclosed trays or screens can be designed for the best solution to your application. In addition, a wide variety of standard and special trays are available. “High Deflection” Vibratory Feeders combine the higher deflection 3/16- inch (4.8 mm) and lower frequency (30 cps) advantages of a mechanical feeder with the trouble–free service of an electromagnetic feeder. The Model HD is designed to handle powders and leafy products that normally could not be fed successfully in an electromagnetic feeder. Feed rates of up to 80 feet per minute (24 m/min) are possible for products with a bulk density less than 10 lb/ft3 (.16 gm/cc).
