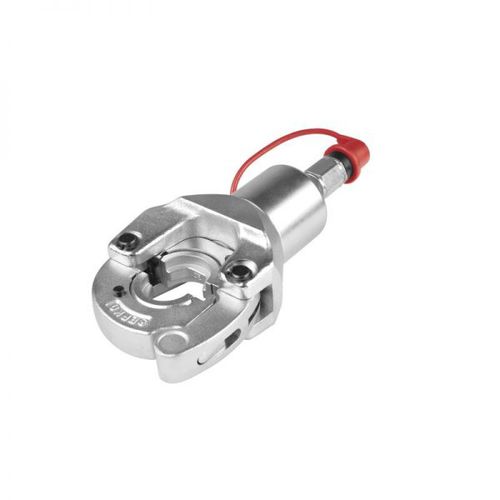

Hydraulic crimping head GZ 300

Hydraulic head for: • ring terminals without insulation (ZA dies) of 10 ÷ 120 mm2 • ring terminals with insulation (ZE dies) of 10 ÷ 120 mm2 • cable end-sleeves with and without insulation (ZT dies) of 25 ÷ 185 mm2 • Cu tubular terminals and connectors on cable conductors (ZS dies) of 6 ÷ 300 mm2 • Al tubular terminals and connectors on cable conductors (ZS dies) of 16 ÷ 240 mm2 • round forming Al sector conductors (ZF dies) of 16 ÷ 240 mm2 Designed for electrical works of high intensity. Works with H 800 hydraulic pump and AH 100, AH 500, AH 550, AH 500L hydraulic units. Crimping dies (need to be ordered separately) Weight (without dies): 2,6 kg; Force: 79,2 kN; Pressure: 630 bar
