Cutting busbar fabrication machine SH 300
punchingbendingfixed

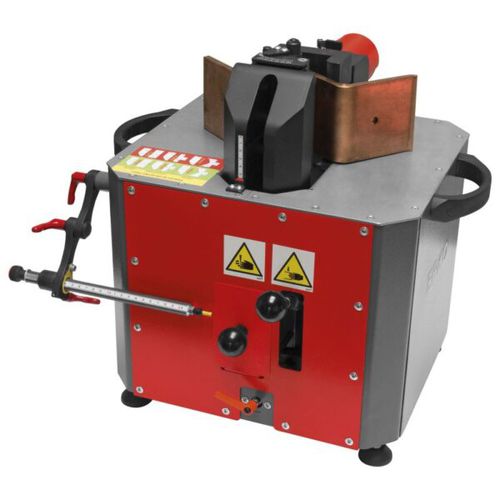

Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed - image - 2
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed - image - 3
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed - image - 4
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed - image - 5
Cutting busbar fabrication machine - SH 300 - Erko - punching / bending / fixed - image - 6
Add to favorites
Compare this product


Characteristics

Operations
cutting, punching, bending
Configuration
fixed
Other characteristics
electro-hydraulic

Description

Station for cutting, hole punching, bending and offsetting Al and Cu busbars as well as inserting nuts: • width range: 30 ÷ 125 mm • thickness range 5 ÷ 12 mm • bending angle range 15° ÷ 90° Special features: • equipped with an adjustable bending angle indicator (graduation rate of the resolution is 5°, measurement does not include the elasticity of the busbar) • equipped with a bumper with scale (adjustment ruler range is 200 mm, accuracy of 1 mm) • body height adjustment (accuracy of 1 mm) • burr-free round and oval holes punching • burr-free busbars cutting • standard set for inserting nuts SH 307, SH 303 Works with: H 800 hydraulic pump and AH 100, AH 500, AH 550, AH 500L hydraulic units (need to be ordered separately). Overall dimensions (LxWxH): 550x540x430 mm; Weight with standard equipment 57 kg; Force: 150 kN;Pressure: 630 bar
