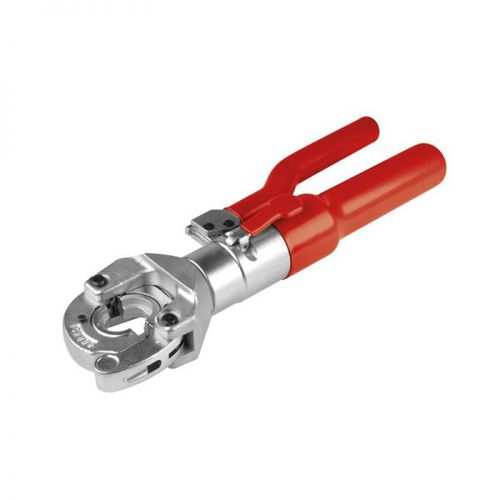

Hydraulic crimping tool HRZ 300
handfor cable lugsfor wires

Hydraulic crimping tool - HRZ 300 - Erko - hand / for cable lugs / for wires
Hydraulic crimping tool - HRZ 300 - Erko - hand / for cable lugs / for wires
Hydraulic crimping tool - HRZ 300 - Erko - hand / for cable lugs / for wires - image - 2
Hydraulic crimping tool - HRZ 300 - Erko - hand / for cable lugs / for wires - image - 3
Hydraulic crimping tool - HRZ 300 - Erko - hand / for cable lugs / for wires - image - 4
Add to favorites
Compare this product


Characteristics

Operation
hand, hydraulic
Applications
for cable lugs, for wires, for tubes
Crimp profile

Max.: 300 mm²
(0.465 in²)

Min.: 6 mm²
(0.009 in²)

Description

Hydraulic hand press for: • ring terminals without insulation (ZA dies) of 10 ÷ 120 mm2 • ring terminals with insulation (ZE dies) of 10 ÷ 120 mm2 • cable end-sleeves with and without insulation (ZT dies) of 25 ÷ 185 mm2 • Cu tubular terminals and connectors on cable conductors (ZS dies) of 6 ÷ 300 mm2 • Al tubular terminals and connectors on cable conductors (ZS dies) of 16 ÷ 240 mm2 • round forming Al sector conductors (ZF dies) of 16 ÷ 240 mm2 • flip top, rotatable by 180° head Designed for electrical works of average intensity. Crimping dies (need to be ordered separately) Weight (without dies): 4,5 kg; Force: 66,6 kN
