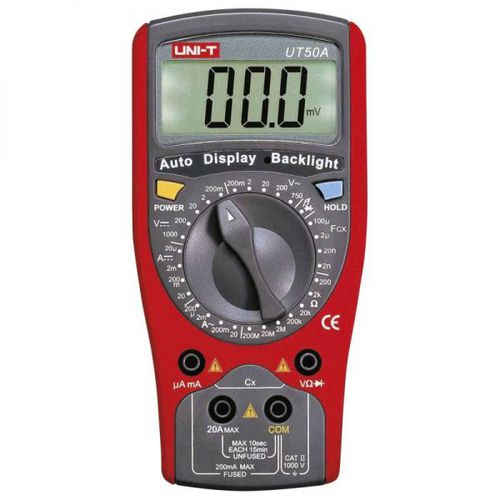

Digital multimeter UT 50Aportable1000 V20 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 20 A
- Additional features
- frequency
- Max DC voltage
Min.: 0 V
Max.: 1,000 V
- Max AC voltage
Min.: 0 V
Max.: 750 V
- Max DC current
Min.: 0 A
Max.: 20 A
- Max AC current
Min.: 0 A
Max.: 20 A
- Max frequency measure
50 Hz, 60 Hz
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 1,000 °C
(1,832 °F)- Length
165 mm
(6.5 in)- Width
80 mm
(3.15 in)- Height
38.3 mm
(1.51 in)- Weight
275 g
(9.7 oz)
Description
• resistance: 200Ω/2kΩ/200kΩ/2MΩ/20MΩ
• inductance 2mH/20mH/200mH/20H
• capacity: 100 mikro F
• manual range
• diode test
• data hold
• continuity buzzer
• low battery display
• temperature measurement in Celcius degrees (from -40⁰C to +1000⁰C)
• sleep mode
• full icon display
• automatic off
• LCD backlight
• LCD size: 59×25 mm
• power: battery 9V (6F22)
