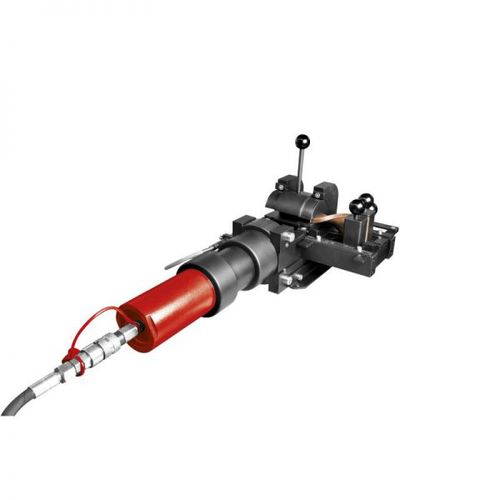

Busbar bender HSk 5010electro-hydraulic
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Product handled
- busbar
- Bending angle
90 °
- Overall length
720 mm
(28 in)- Total height
190 mm
(7 in)
Description
Bender for axial bending (propeller like) Al and Cu busbars:
• width range 20 ÷ 50 mm
• thickness range 3 ÷ 10 mm
• bending angle range up to 90°
Special features:
• equipped with electric sensor (limit switch) enabling reapetable bending
• equipped with spacer insert for rotatable handle, for busbars of thickness up to 5 mm
• equipped with adjustable busbar width bracket
Works with AH 100, AH 500, AH 550, AH 500L hydraulic units.
Dimensions: (LxWxH): 720x300x190 mm; Weight: 42 kg; Pressure: 380 bar
