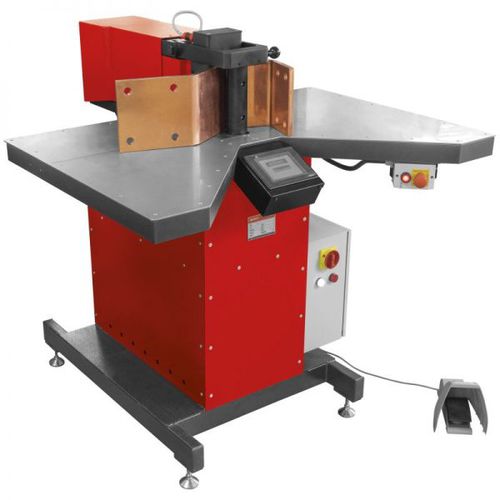

Bending busbar machine HG 200

mobile

Station for precise Al and Cu busbar bending: • width range of cut busbar 50 ÷ 180 mm • width range of bent busbar 50 ÷ 200 mm • thickness range of bent and cut busbar 5 ÷ 15 mm • bending angle range up to 90° Special features: • equipped with angle compensation system, consequent to flexibility of bent material – standard radius of bending inserts: R5; R8; R10; R12; R15; R20 (other sizes on request after technical consultation) – 4 bending inserts can be used with station (3 standard of which 1 included in the price, others paid extra, and 1 non standard custom maid) • easy in operation panel, minimizing time for programming • ergonomic worktop shape assuring precise bending of long busbars • stable construction and low weight same time • efficient, compact electric hydraulic unit, with low electricity consumption makes the device very economical • possibility of adjusting the station for individual customers needs Total dimensions (LxWxH): 1200 x 1230 x 1274 mm; Weight with standard equipment: 450 kg; Force 30 kN at a pressure of 400 bar; Power supply: 3 x 400V / 230V; 1,68 kW
