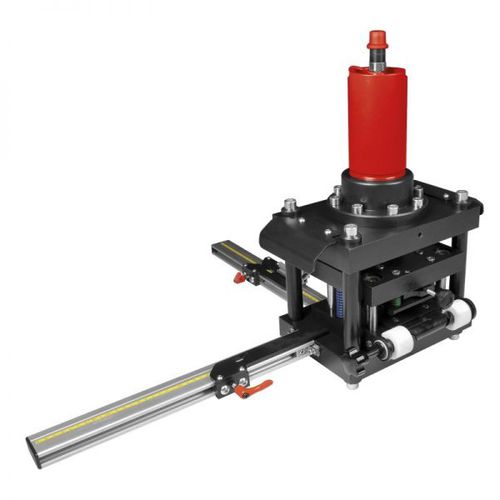

Flexible busbar system HSE 100
Add to favorites
Compare this product
Characteristics
- Structure
- flexible
Description
Station for hole punching, cutting and initial stripping of flexible busbars:
• busbar width range 30 ÷ 100 mm
• busbar thickness range 4 ÷ 10 mm
• round holes punching of diameter 6,6 ÷ 21 mm
• easy system of exchanging stamps and dies
• easy process of exchanging insert for stripping
• cutting accuracy due to installed rulers and centering module
NOTE: HSE 105 module for cutting and initial stripping to be ordered separately.
Works with H 800 hydraulic pump and AH 100, AH 500, AH 550, AH 500L hydraulic units.
Dimensions (LxWxH): 490 x 390 x 490 mm; Weight: 32,5 kg; Force: 190 kN
Pressure: 630 bar
