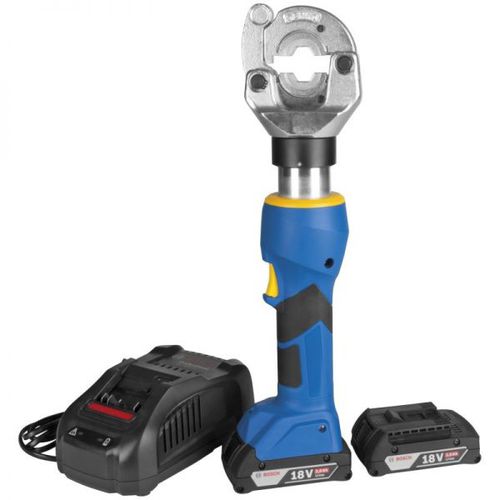

Hydraulic crimping tool EPZC 300

for cable lugsfor wiresfor tubes

Battery powered hydraulic press with flip top head for: • ring terminals without insulation (ZA dies) of 10 ÷ 120 mm2 • ring terminals with insulation (ZE dies) of 10 ÷ 120 mm2 • cable end-sleeves with and without insulation (ZT dies) of 25 ÷ 185 mm2 • Cu tubular terminals and connectors on cable conductors (ZSC dies) of 6 ÷ 300 mm2 • Al tubular terminals and connectors on cable conductors (ZSC dies) of 16 ÷ 240 mm2 • round forming Al sector conductors (ZF dies) of 16 ÷ 240 mm2 Special features: • automatic off switch ending operation cycle after crimping • improper crimping signalling • efficient lithium-ion battery • automatic pressure control • flip top, rotatable by 330° head • casing providing insulation against electric shock is made entirely of glass-fiber reinforced polyamide • piston rod return is controlled by a control valve • the device is controlled by microcontroller • 2 batteries provided with set Crimping dies (need to be ordered separately) NOTE: for copper terminals over 120 mm2 use ZSC crimping dies Weight: 3,8 kg (with battery); Force: 50 kN
