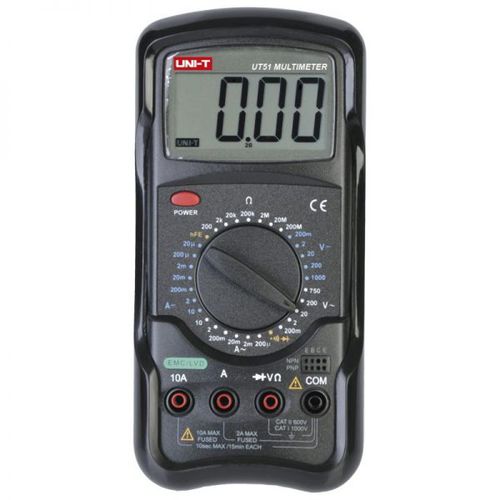

Digital multimeter UT51portable1000 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 750 V
Min.: 0 V
- Max DC current
Max.: 10 A
Min.: 0 A
- Max AC current
Max.: 10 A
Min.: 0 A
- Max frequency measure
Max.: 20 kHz
Min.: 0 kHz
- Process temperature
Max.: 1,000 °C
(1,832 °F)Min.: -20 °C
(-4 °F)- Length
190 mm
(7.48 in)- Width
88 mm
(3.46 in)- Height
34 mm
(1.34 in)- Weight
560 g
(19.75 oz)
Description
• resistance: 200Ω/2kΩ/200kΩ/2MΩ/20MΩ
• capacity: 100 μF
• inductance: 2mH/20mH/200mH/20H
• 10A fuse
• manual range
• diode test
• transistors
• data hold
• continuity buzzer
• sleep mode
• low battery display
• full icon display
• automatic off
• LCD backlight
• power: battery 9V (6F22)
• LCD size: 33×65 mm
