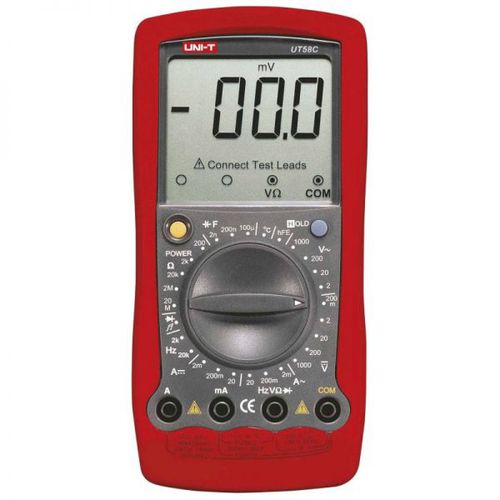

Digital multimeter UT58Cportable1000 V20 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 20 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC
- Max DC voltage
Min.: 0 V
Max.: 1,000 V
- Max AC voltage
Min.: 0 V
Max.: 750 V
- Max DC current
Min.: 0 A
Max.: 20 A
- Max AC current
Min.: 0 A
Max.: 20 A
- Max frequency measure
Min.: 0 kHz
Max.: 20 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 1,000 °C
(1,832 °F)- Length
179 mm
(7.05 in)- Width
88 mm
(3.46 in)- Height
39 mm
(1.54 in)- Weight
350 g
(12.35 oz)
Description
• resistance: 200Ω/2kΩ/200kΩ/2MΩ/200MΩ
• capacity: 0~20 μF
• inductance: 0~20 H
• manual range
• diode test
• transistors measurement
• data hold
• continuity buzzer
• sleep mode
• low battery display
• full icon display
• automatic off
• LCD backlight
• power: battery 9V (6F22)
• LCD size: 60×54 mm
