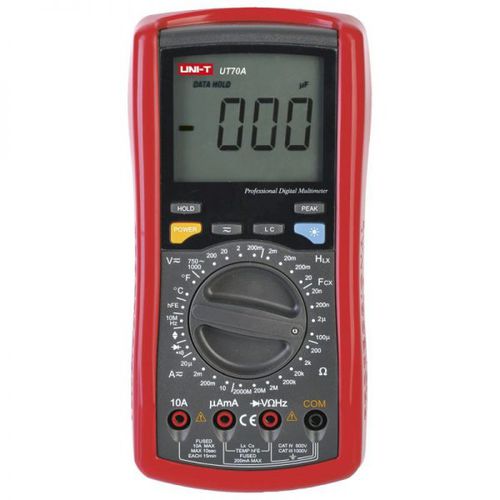

Portable multimeter UT70A1000 V10 Afrequency
Add to favorites
Compare this product
Characteristics
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 750 V
Min.: 0 V
- Max DC current
Max.: 10 A
Min.: 0 A
- Max AC current
Max.: 10 A
Min.: 0 A
- Max frequency measure
Max.: 10 MHz
Min.: 0 MHz
- Process temperature
Max.: 1,000 °C
(1,832 °F)Min.: -40 °C
(-40 °F)- Length
195 mm
(7.68 in)- Width
90 mm
(3.54 in)- Height
40 mm
(1.57 in)- Weight
620 g
(21.87 oz)
Description
• temperature measurement in Celsius degrees (from -40⁰C to +1000⁰C)
• resistance: 200Ω/2kΩ/200kΩ/2MΩ/2000MΩ
• capacity: 0~100 μF
• frequency: 0~10 MHz
• inductance: 0~20 H
• TTL logical states (High > 2.0 V, Low < 0.8 V)
Features:
Fused 10A, Diode test, Transistors testing, Continuity buzzer, Data hold, Sleep mode, Low battery indication
• power: battery 9V (6F22)
• LCD size: 62×53 mm
