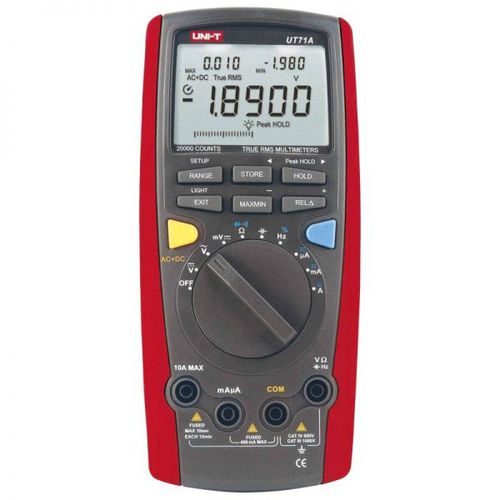

Digital multimeter UT71A
portable1000 V10 A

digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
10 A
Additional features
frequency
Applications
industrial
Other characteristics
AC/DC, true RMS, USB
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 1,000 V

Min.: 0 V

Max DC current

Max.: 10 A

Min.: 0 A

Max AC current

Max.: 10 A

Min.: 0 A

Max frequency measure

Max.: 200 MHz

Min.: 0 MHz

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: -40 °C
(-40 °F)

Length

200 mm
(7.87 in)

Width

93 mm
(3.66 in)

Height

40 mm
(1.57 in)

Weight

384 g
(13.55 oz)

Description

• resistance: 200Ω/2kΩ/200kΩ/2MΩ/20MΩ • capacity: 0~20 mF • frequency: 0~200 MHz • fill factor: 10~90% • 4~20 mA LOOP: 0~100% Features: Fused 10A, Auto range, Diode test, Continuity buzzer, True RMS, Data hold, Peak Hold, Max/Min mode, Relative value, Analogue Bar-Graph, USB, Sleep mode, Low battery indication • power: battery 9V (6F22) • LCD size: 73×50 mm
