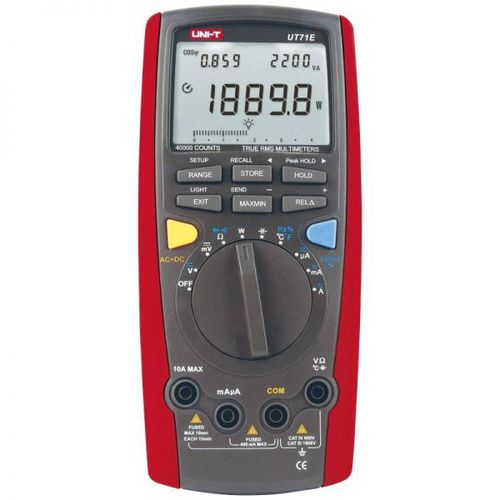

Digital multimeter UT71Eportable1000 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC, true RMS, USB
- Max DC voltage
Min.: 0 V
Max.: 1,000 V
- Max AC voltage
Min.: 0 V
Max.: 1,000 V
- Max DC current
Min.: 0 A
Max.: 10 A
- Max AC current
Min.: 0 A
Max.: 10 A
- Max frequency measure
Min.: 0 MHz
Max.: 400 MHz
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 1,000 °C
(1,832 °F)- Length
200 mm
(7.87 in)- Width
93 mm
(3.66 in)- Height
40 mm
(1.57 in)- Weight
384 g
(13.55 oz)
Description
• temperature measurement in Celsius degrees (from -40⁰C to +1000⁰C)
• resistance: 0-40MΩ
• capacity: 0~40 mF
• frequency: 0~400 MHz
• duty cycle: 10~90%
• 4~20 mA LOOP: 0~100%
Features:
Fused 10A, Auto range, Diode test, Continuity buzzer, True RMS, Data hold, Peak Hold, Data storage, Data read, Max/Min mode, Relative value, Analogue Bar-Graph, USB, Sleep mode, Low battery indication
• power: battery 9V (6F22)
• LCD size: 73×50 mm
Standard accessories:
test lead, battery, point contact, temperature probe, alligator clip, USB cable, case, clip, software
