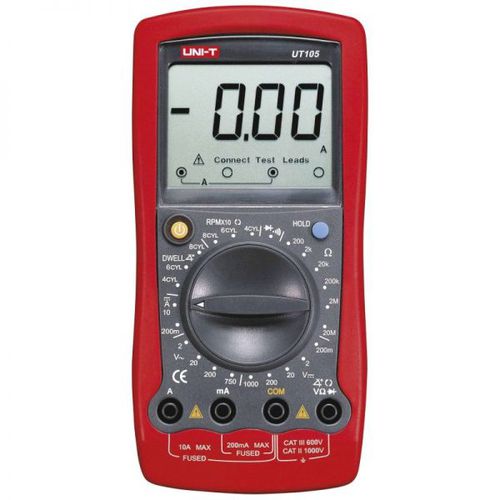

Multimeter for automotive applications UT 105digitalportable1000 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Additional features
- frequency
- Applications
- for automotive applications
- Other characteristics
- AC/DC
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 750 V
Min.: 0 V
- Max DC current
Max.: 10 A
Min.: 0 A
- Length
179 mm
(7.05 in)- Width
88 mm
(3.46 in)- Height
39 mm
(1.54 in)- Weight
352 g
(12.42 oz)
Description
• resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
• measurement angle of closure interruper contacts
• rotation speed measurement: RPM x 10
• polarity indicator „-” when negative
• overload indicator „1” or „-1”
• manual range
• diode test
• data hold
• continuity buzzer
• low battery display
• automatic reset
• full icon display
• power: battery: 9V (6F22)
• LCD size: 60×54 MM
Diagnosis of automotive troubles:
• fuse testing
• switch testing
• solenoid testing
• load-free battery testing
• battery power consumption testing
• voltage drop testing
• charging system voltage testing
• ignition coil testing
• high-voltage leads testing
• Hall sensor testing
• magnetic resistance sensor testing
• measurement of engine speed
• supply system testing
