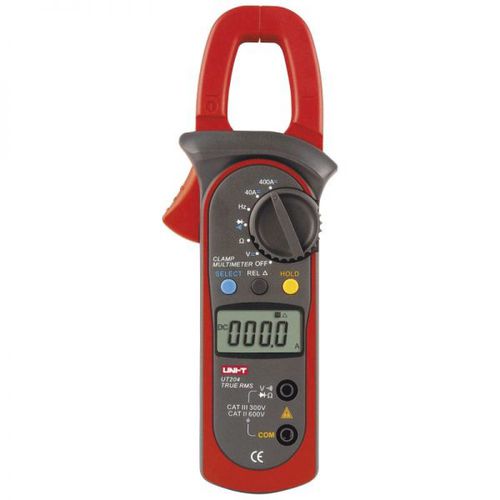

Digital clamp meter UT 204portable600 V400 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 400 A
- Additional features
- frequency
- Applications
- industrial
- Other characteristics
- AC/DC
- Max DC voltage
Min.: 0 V
Max.: 600 V
- Max AC voltage
Min.: 0 V
Max.: 600 V
- Max DC current
Min.: 0 A
Max.: 400 A
- Max AC current
Min.: 0 A
Max.: 400 A
- Max frequency measure
Min.: 0 MHz
Max.: 1 MHz
- Length
210 mm
(8.27 in)- Width
76 mm
(2.99 in)- Height
30 mm
(1.18 in)- Weight
200 g
(7.05 oz)
Description
Allows to measure AC / DC current, AC/DC voltage resistance, frequency and duty cycle.
Ergonomic soft-handles with slip-off protection ensure reliable adhesion to hand.
• resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• input impedance for DCV around 10MΩ
• frequency 10Hz~1MHz
• duty cycle – 0.1%~99.9%
• auto range
• Jaw Capacity max. 28mm
• diode test
• data hold
• continuity buzzer
• low battery display
• sleep mode
• full icon dispaly
• true RMS
• power: battery 9V
• LCD size: 35,6×18 mm
• resistance to falls: up to 1 m
