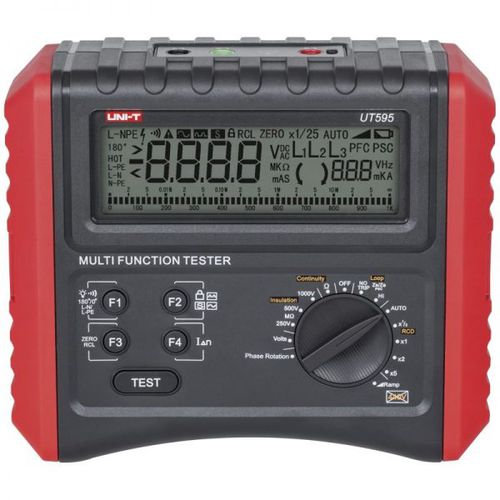

Digital multimeter UT595

portable1000 Vfrequency

• Insulation resistance: 250 V: 0.05 MΩ~250 MΩ 500 V: 0.05 MΩ~500 MΩ 1000 V: 0.05 MΩ~1000 MΩ • Short circuit current: 200 mA • Line impedance: range: 0.01 Ω~2000 Ω; operational voltage: 195 V~440 V (45~65 Hz); testing current: 20 A; range PFC: 0 kA~26 kA • Loop impedance: range: 0.01 Ω ~2000 Ω; operational voltage: 195 V~253 V (45~65 Hz); testing current: 20 A; range PFC: 0 kA~26 kA • Loop impedance without tripping: range: 1 Ω ~2000 Ω; operational voltage: 195 V~253 V (45~65 Hz); testing current: 15 mA; range PFC: 0 kA~26 kA • RCD: operational voltage: 195 V~253 V (45~65 Hz) testing current: 10 mA, 30mA, 100 mA, 300 mA, 500 mA range: x ½ *lΔn range: 0~2000 ms; x 1 *lΔn range: 0~300 ms; x 1 *lΔn range: 0~500 ms (selective mode); x 2 *lΔn range: 0~300 ms; x 2 *lΔn range: 0~500 ms (selective mode); x 5 *lΔn range: 0~40 ms • Phase sequence test: operational voltage: 100 V~440 V (45~65 Hz) rezultat pomiaru: L1–›L2–›L3 – positive change, L1–›L3–›L2 – to reverse RCD measurement ramp slope: testing current: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA • DC voltage: range: 0 V~440 V; frequency: 45~65 Hz; resolution: 1 V • AC voltage: range: 0 V~440 V; frequency: 45~65 Hz; resolution: 1 V • Power: 1,5V battery (8x LR6) • LCD size: 125×37 mm Standard accessories: test lead, batteries, manual, alligator clip
