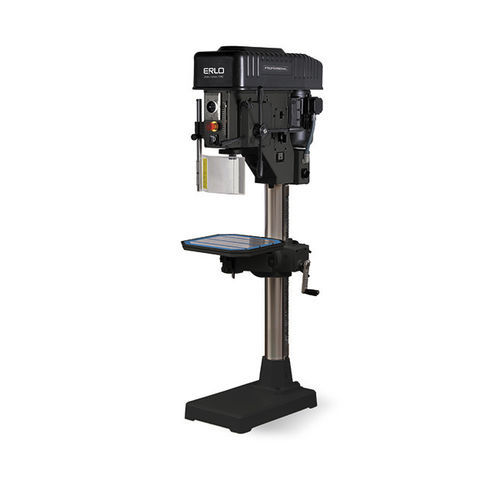

Drill press V-40electricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 80 rpm
(502.7 rad.min-1)Max.: 1,170 rpm
(7,351.3 rad.min-1)- Drilling diameter
40 mm
(1.57 in)
Description
Feed manual
Transmission mechanical with conical pulley variator
Column diameter: 125 mm
Distance from spindle to column: 300 mm
Moveable table and fixed bit
Drilling capacity: ⌀ 40 mm
Tapping capacity: M 32
Spindle cone: CM 4
Engine power: 1,8 | 3,2 HP
Variable speeds: 80 - 1170 rpm
Drilling depth: 150 mm
Weight: 260 kg
Measurements: 655x400x1960 mm
Catalogs
Serie V-VP
2 Pages
