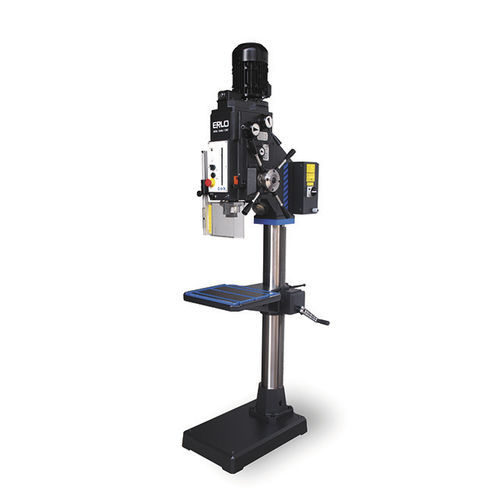

Drill press GP-40electricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Max.: 2,100 rpm
(13,194.7 rad.min-1)Min.: 75 rpm
(471.2 rad.min-1)- Drilling diameter
40 mm
(1.57 in)
Description
Feed automatic advance - mechanical clutch
Feed: 0,10-0,20-0,30
Transmission gears
Column diameter: 125 mm
Distance from spindle to column: 300 mm
Moveable table and fixed bit
Drilling capacity: ⌀ 40 mm
Tapping capacity: M 30
Spindle cone: CM 4
Engine power: 1,8 | 3,2 HP
Num. and selections of speeds: (8) 75 - 2100 rpm
Drilling depth: 160 mm
Weight: 300 kg
Measurements: 655x492x2260 mm
