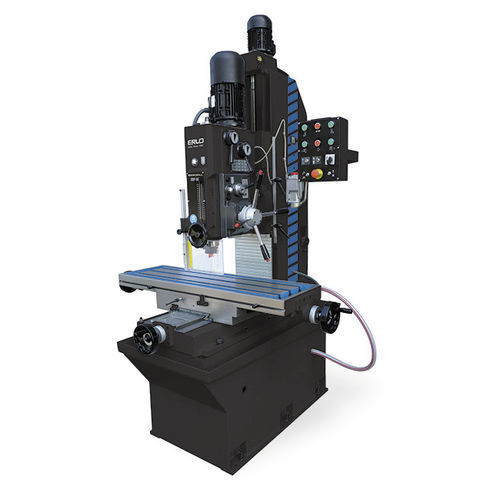

Column type drilling and milling machine TF series
Add to favorites
Compare this product
Characteristics
- Structure
- column type
- Drilling diameter
35 mm
(1.38 in)
Description
Feed electromagnetic automatic
Feed: 0,10-0,18-0,24
Transmission gears
Column diameter: mm
Distance from spindle to column: 390 mm
Milling capacity: 55 cm3/min
Spindle cone: CM 4
Engine power: 1.2 | 2 HP
Drilling depth: 180 mm
Fixed base and moveable bit
Coordinates table: 360x1220 mm
Motorised bit movement
45º tiltable bit on each side
Front wheel for sensitive fine feed
Manual grease pump, for guides, column and table
Tool holding clamp
Weight: 910 kg
Measurements: 1510x1660x2600 mm
Bench with door and drawer
Cooling equipment: (SR)
Light equipment
