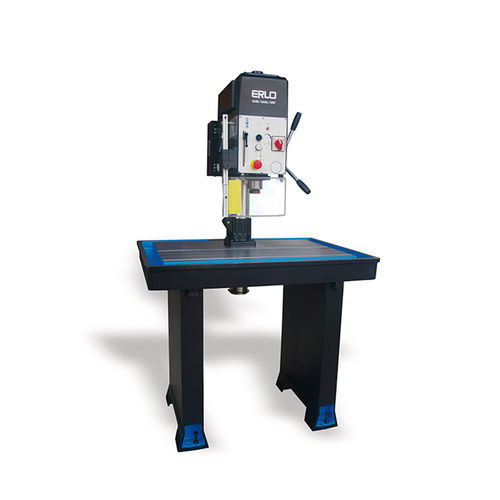

Drill press MS series
electricwith fixed table

Drill press - MS series - ERLOGROUP - electric / with fixed table
Drill press - MS series - ERLOGROUP - electric / with fixed table
Add to favorites
Compare this product

Go to the ERLOGROUP website for more information

Characteristics

Type
column type
Power source
electric
Other characteristics
with fixed table
Rotational speed

Min.: 245 rpm
(1,539.4 rad.min-1)

Max.: 4,000 rpm
(25,132.7 rad.min-1)

Drilling diameter

Min.: 18 mm
(0.71 in)

Max.: 30 mm
(1.18 in)

Description

Feed manual Manual drilling feed Transmission belts Column diameter: 100 mm Distance from spindle to column: 250 mm 1118 x 813 mm fixed table and moveable, rotating bit Tapping capacity: M 14-18-25 Spindle cone: CM 3 Engine power: 0.68/1.4 | 0.95/1.8 | 1.2/2.3 HP Drilling depth: 120 mm Weight: 500 kg Measurements: 860x1118x1980 mm Cooling equipment (MSR) Light equipment

Catalogs

No catalogs are available for this product.

See all of ERLOGROUP‘s catalogs
Go to the ERLOGROUP website for more information
