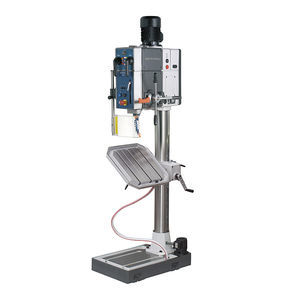

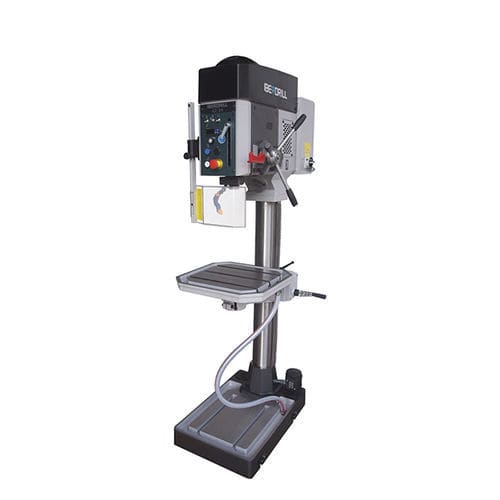

Mechanical self-feed drill AZ34

column typeelectricvariable-speed

Feed mechanical automatic Feed: (3) 0.10-0.2-0.3 Transmission electronic variator belt Column diameter: 125 mm Distance from spindle to column: 300 mm Fixed table Drilling capacity: ⌀ 34 mm Tapping capacity: M 27 Spindle cone: CM 4 Engine power: 4 HP Speeds: Continuous: (100-2000) rpm Drilling depth: 150 mm Weight: 360 kg Measurements: 2,30 x 0,6 x 1,1 m. *The drill in the image has a rotating table as optional equipment
