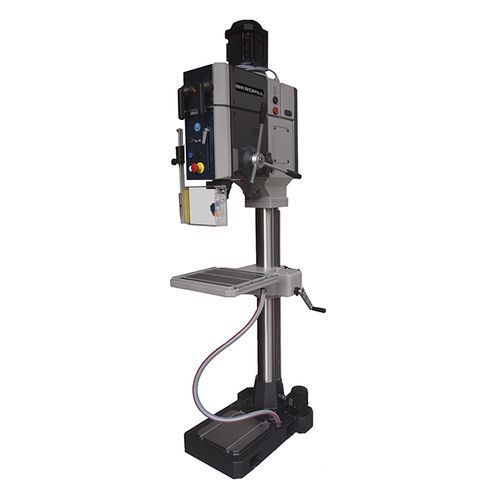

Drill press SX 32electricpowerfulheavy-duty
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- powerful, heavy-duty, manual feed
- Rotational speed
Max.: 1,852 rpm
(11,636.5 rad.min-1)Min.: 132 rpm
(829.4 rad.min-1)- Voltage
380 V
- Drilling diameter
32 mm
(1.26 in)
Description
SX 32 series
Drill of round column manual feed
Feed manual
Transmission gears
Column diameter: 125 mm
Distance from spindle to column: 300 mm
Fixed moveable table
Drilling capacity: ⌀ 32 mm
Tapping capacity: M 18
Spindle cone: CM 4
Engine power: 1.5 HP
Num. and selections of speeds: (9) 132 - 1852 rpm
Drilling depth: 150 mm
Weight: 385 kg
Measurements: 2,3 x 0,6 x 1,1 m.
