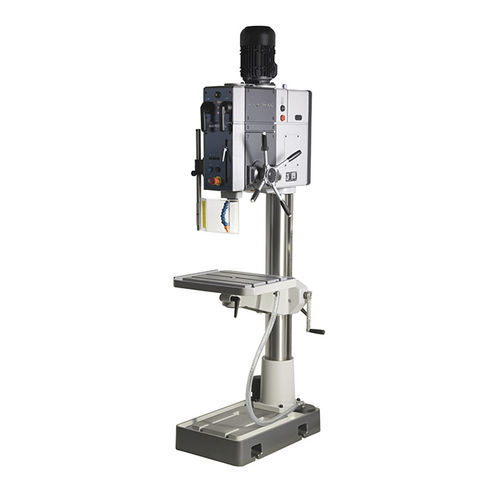

Drill press BX 32
electricpowerfulvariable-speed

Drill press - BX 32 - ERLOGROUP - electric / powerful / variable-speed
Drill press - BX 32 - ERLOGROUP - electric / powerful / variable-speed
Add to favorites
Compare this product


Characteristics

Type
column type
Power source
electric
Other characteristics
powerful, variable-speed, heavy-duty, with fixed table, electromagnetic self-feed
Rotational speed

Min.: 132 rpm
(829.4 rad.min-1)

Max.: 1,852 rpm
(11,636.5 rad.min-1)

Voltage

380 V

Drilling diameter

32 mm
(1.26 in)

Description

BX 32 series Drill of round column electromagnetic automatic feed Feed electromagnetic automatic Feed: (3) 0.10-0.2-0.3 Transmission gears Column diameter: 125 mm Distance from spindle to column: 300 mm Fixed moveable table Drilling capacity: ⌀ 32 mm Tapping capacity: M 22 Spindle cone: CM 4 Engine power: 1.5 HP Num. and selections of speeds: (9) 132 - 1852 rpm Drilling depth: 150 mm Weight: 410 kg Measurements: 2,3 x 0,6 x 1,1 m.
