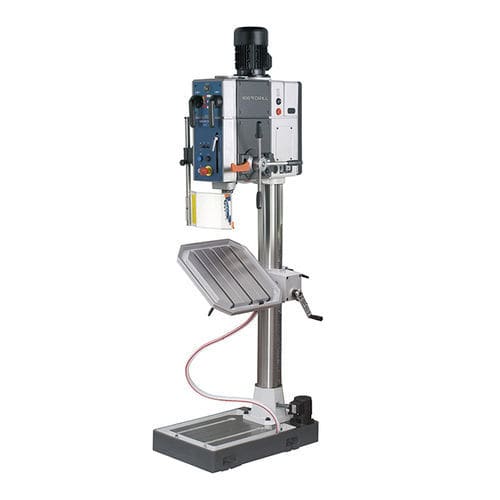

Mechanical self-feed drill AX 40

column typeelectricpowerful

AX 40 series Drill of round column mechanical automatic feed Feed mechanical automatic Feed: (3) 0.10-0.2-0.3 Transmission gears Column diameter: 150 mm Distance from spindle to column: 350 mm Tiltable rotating table Drilling capacity: ⌀ 40 mm Tapping capacity: M 33 Spindle cone: CM 4 Engine power: 3 HP Num. and selections of speeds: (9) 132 - 1852 rpm Drilling depth: 180 mm Weight: 490 kg Measurements: 2,3 x 0,6 x 1,1 m.
