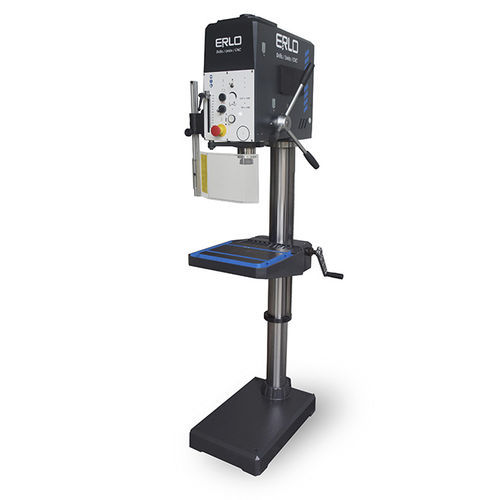

Drill press C serieselectricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 245 rpm
(1,539.4 rad.min-1)Max.: 4,000 rpm
(25,132.7 rad.min-1)- Drilling diameter
Min.: 18 mm
(0.71 in)Max.: 30 mm
(1.18 in)
Description
Feed manual
Transmission belts
Column diameter: 100 mm
Distance from spindle to column: 250 mm
Moveable table and fixed bit
Tapping capacity: M 14-18-25
Spindle cone: CM 3
Engine power: 0.68/1.4 | 0.95/1.8 | 1.2/2 HP
Drilling depth: 120 mm
Weight: 280 kg
Measurements: 655x400x1900 mm
Cooling equipment: Opcional
Light equipment
