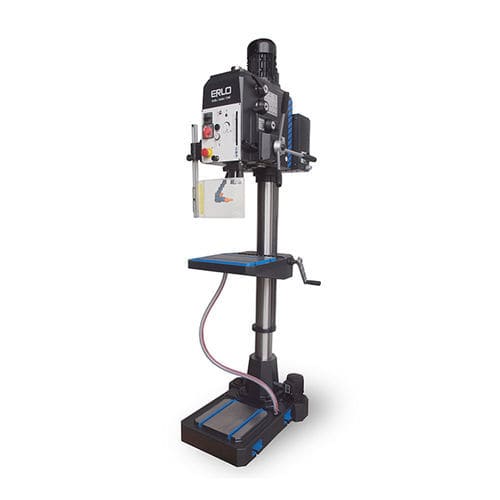

Drill press TSA 25/30 serieselectricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 65 rpm
(408.4 rad.min-1)Max.: 3,060 rpm
(19,226.5 rad.min-1)- Drilling diameter
Min.: 25 mm
(0.98 in)Max.: 30 mm
(1.18 in)
Description
Feed mechanical automatic
Transmission gears
Column diameter: 100 mm
Distance from spindle to column: 250 mm
Moveable table and fixed bit
Tapping capacity: M 22-25
Feed: 0,10-0,20
Spindle cone: CM 3
Engine power: 1.1/1.6 | 1.5/1.9 HP
Drilling depth: 120 mm
Weight: 260 kg
Measurements: 655x400x2100 mm
Cooling equipment: Opcional
Light equipment
