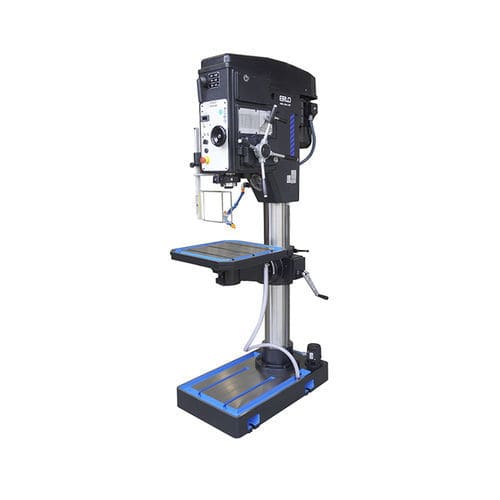

Drill press THV seriesmagneticelectricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type, magnetic
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 60 rpm
(377 rad.min-1)Max.: 1,500 rpm
(9,424.8 rad.min-1)- Drilling diameter
Min.: 40 mm
(1.57 in)Max.: 50 mm
(1.97 in)
Description
Feed electromagnetic automatic
Transmission belts and gears
Column diameter: 175 mm
Distance from spindle to column: 360 mm
Fixed head, tiltable and rotating table
Front wheel for sensitive fine feed
Tapping capacity: M 36
Feed: 0,1-0,2-0,3-0,4
Spindle cone: CM 4
Engine power: 4 HP
Drilling depth: 200 mm
Weight: 660 kg
Cooling equipment
Light equipment
