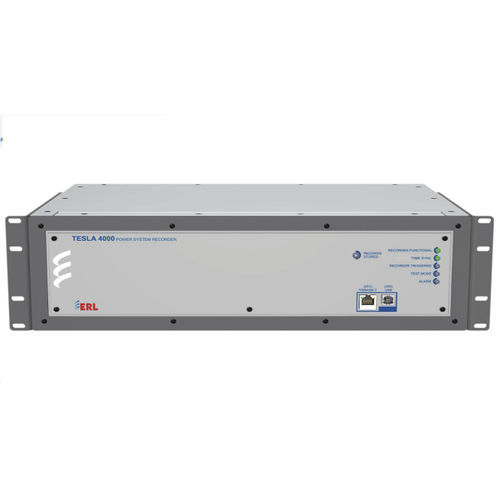

LAN fault recorder 4000-SV

Ethernetdigitalstandard

• Application using IEC 61850 in Digital Substations • Lower Installation Cost - quickly exchange data over the station LAN without wiring separate links for each relay • Lower Extension Costs - add devices and applications into an existing IEC 61850 system with minimal impact, if any, on existing equipment • Lower Integration Costs – to integrate substation data into the enterprise, use same networking technology widely used across the utility TESLA 4000 provides support for IEC 61850-9-2LE process bus Sampled Values and IEC 61850-8-1 station bus applications. It implements mapping according to IEC 61850 edition 2 logical nodes and data models. Use the TESLA 4000 to subscribe sampled values streams from merging units. Apply the Model 4000-SV to publish and subscribe to GOOSE messages from protective relays and switchgear. The Model 4000-SV also supports direct streaming of MMS reports to remote clients, eliminating the need for RTUs. The Model 4000-SV supports the top-down or bottom-up engineering process defined in the IEC 61850-6 standard. Such flexibility permits standardization and interoperability of fault and disturbance recording solutions as the industry moves towards fully digital substations. Applications • Complete integrated insight of power system health • Performance monitoring of substation IEDs and equipment • Over 1000 user settable triggers capture vital information that could be missed by relays in the system • Information provided for wide area monitoring (WAMS) and analysis • As a PMU, streams up to 36 phasors, 24 analog quantities, and 64 digital statuses simultaneously
