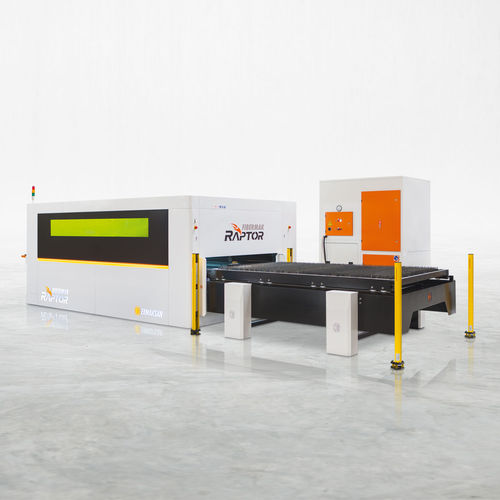

Fiber laser cutting machine FIBERMAK RAPTOR series2D laserfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 2D laser
- Material
- for aluminum, for stainless steel, for steel, for copper, for brass
- Product handled
- sheet metal
- Control type
- CNC
- Applications
- for industrial applications, for metal fabrication, for the automotive industry, for aeronautical applications, for the food industry, for shipbuilding
- Workpiece loading
- automated loading/unloading
- Configuration
- 3-axis, 4-axis
- Other characteristics
- high-power, high-speed, high-precision, precision, with servo-motor, economical, ISO, modular, mild steel, galvanized steel, for structural steel, for thin materials
- X travel
2,550 mm
(100.39 in)- Y travel
1,270 mm, 1,550 mm
(50 in, 61.02 in)- Z travel
150 mm
(6 in)- Maximum cutting height
Max.: 25 mm
(1 in)Min.: 5 mm
(0.2 in)- Cutting speed
70,000 mm/min
(45.932 in/s)- Laser power
Max.: 10,000 W
Min.: 1,000 W
500 W, 1,000 W, 2,000 W
- Repeatability
0.05 mm
(0.002 in)- Overall length
5,200 mm, 8,200 mm
(205 in, 323 in)- Overall width
2,450 mm, 4,200 mm
(96 in, 165 in)- Height
2,200 mm, 2,610 mm
(87 in, 103 in)- Weight
7,900 kg, 10,400 kg
(17,416.52 lb, 22,928.08 lb)
Description
RAPTOR Fiber Laser Cutting machines is produced to be an alternative solution without any concession from cutting quality with its less space requirements, modular and ergonomic design compared to standard Fibermak.
GENERAL FEATURES
• Modular and ergonomic design
• Designed as 0.5 G acceleration and 50 m/min. speed
• Extraction Unit
• Conveyor
• Loading Unit
• 15” touch screen controller
• Servo motor technology
• High precision cutting head
• Standard 500 W and 1 kW laser unit
CUTTING HEAD FEATURES
• Manual adjustable focal lens
• Precise height control
• Protection Glass
• Piercing air system
