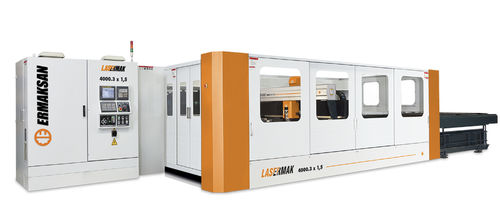

CO2 laser cutting machine LASERMAK

for metalsheet metalCNC

The Lasermak developed by Ermaksan’s expert engineers, provides perfect cutting speeds and reflects innovative technologies by every features • Machine frame,5 axes (X,U,Y,V with linear motor - Z axis with servo motor); High speed laser cutting machine • Chiller unit, for laser source, linear motors, cutting head and all optic components, equipped with a special micron rated water filter. • CNC control unit, Fanuc 31i-LB 10.4” LCD Screen, display screen for all laser and maintenance functions. • Cutting head, precitec HP1.5” (for 2.5 KW); HP2” (for 4 KW) • Exchangeable cartridge system, precitec 5” and 7.5” • Easy changeable lens Kit, ZnSe positive meniscus lens. • Capacitive approaching controller, sensitive distance control with precitec EG8010 adjust box. • Nozzle Kit, • Optical mirror kit, 5 pieces folding mirror. • Cutting head ceramic part kit, 3 pieces ceramic part. • Beam path system, special beam path protective bellows. • Gas and air control, two proportional valve for pressure adjustment, two sensor to control high and low pressure. • Clean - dry air system, chemical air - dryer with active carbonized filter. • Automatic loading - unloading unit. • Sheet clamps, four holder clamp on every table. • Three point reference sensor and programming. • Conveyor, part and scrap collecting conveyor. • Warning lamps. • Lantek CAD - CAM software. • Machine and operator safety system. • PCMCI flash memory card. • Manuals for all Lasermak equipments. • 3.75” Cutting cartridge and 3.75” Lens (only for 1.5” cutting head) - 10” Lens with extension adaptor. • Motorized cutting head.
