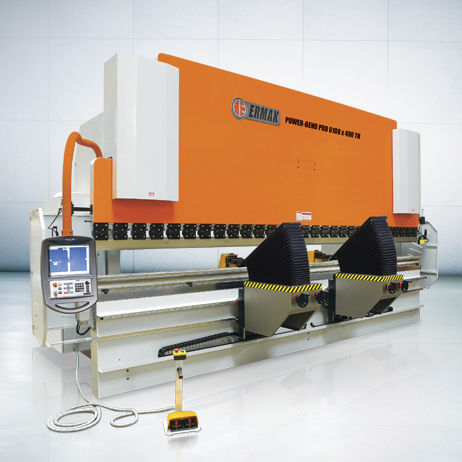

Hydraulic press brake POWER-BEND PRO

CNCprecision

Power-Bend Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features. STANDARD EQUIPMENT • Height adjustable and movable sliding front support arms. • Top and bottom tools are surface hardened by special treatment. • Promecam easy clamping system. • CYBELEC CYBTOUCH 12 PS 2D graphical controller with PC-ModEva 2D software. • CNC controlled strong X=800 mm back gauge • 410 mm throat depth. • 2 back gauge fingers • Scales in metric and inches. • Crowning system in bottom beam 3100/…/4100 - 260 - 320 manual crowning and from 400 tn and above motorized crowning is standard. • Foot pedal is produced according to CE standards and suitable for single and multiple bends. • 2 photocells are placed facing each other for rear guards. • Covers for cylinders and top beam • Preadjusted electrical requirements based on customer’s geographical area. OPTIONAL EQUIPMENT • Special stroke and throat depth gives extra advantages for deep bends. • Delem ER70 controller (up to 5 axis). • Cybelec ModEva PAC Touch controller (up to 7 axis). • ER90Plus controller (3D touch screen). • Special back gauge fingers can be added on optional backgauge stroke. • Motorized crowning system. • Hydraulic oil heating and cooling. • Custom made table width and bottom tool V openings. • Optional top and bottom tools in different length. • Special tools for box and pole bends. • Laser front guard options. • WILA type top and bottom tool clamping system.
