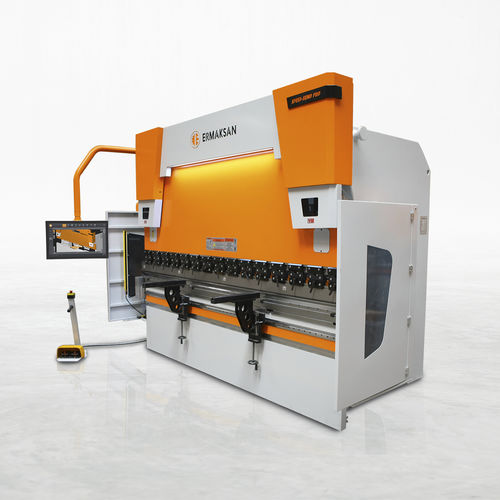

Hydraulic press brake SPEED-BEND PRO series

CNC6-axishigh-speed

Free-fall, bending and return speeds of Speed-Bend press brakes series makes is the best choice to meet demands in today’s competitive markets. Speed-Bend series offer twice as fast production capacity compared to conventional CNC press brakes. STANDARD EQUIPMENT • Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material. • 6 axes (Y1, Y2, X, R, Z1, Z2) • Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics. • HOERBIGER servo hydraulic system. • CNC controlled motorized anti-deflection system. • Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section). • Easy to clamp tool holding system with upper and lower tools. • Standard graphic controllers can be selected from: ER-90 Plus 3D colour graphical touch screen controller with offline software, Cybelec ModEva 15T 3D colour graphics with PC-ModEva offline software, Delem DA-66T 2D with colored graphics. • Electrical panel with cooling system designed to meet CE standards and composed of automation and electrical equipment with SIEMENS branding. • Ergonomic user friendly, pendant control panel. • Back light safety guards (category-4) • Front side covers with safety switches. • Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances. • Foot pedal suitable to CE regulation. • Sliding front support arms with T slot and mm/inch rulers. • Throat depth 410 mm. OPTIONAL EQUIPMENT • - Graphical controllers; Cybelec ModEva RA Premium 3D with PC-RA Premium offline software, Delem DA-69T 3D graphical color controller with Profile T3D offline software. X1+X2 axis, R1+R2 axis
