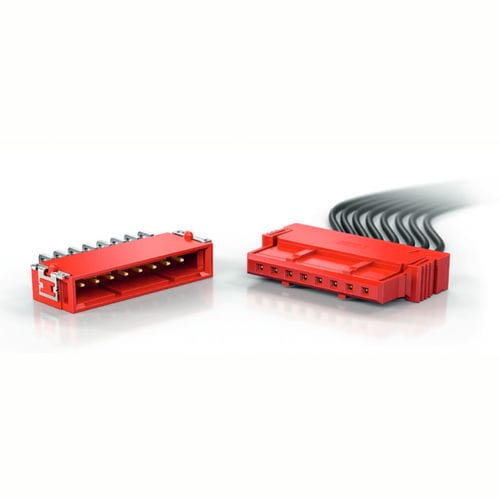

Data connector MaxiBridge

IDESMTwire-to-board

for highly stressed connections The MaxiBridge connector system is a single- and double-row cable connector system with a pitch of 2.54 millimeters. It has a high current rating of up to 12 A per contact and is ideal for space-saving, highly stressed connections. ERNI offers MaxiBridge connectors with two to twenty contacts for numerous applications. MaxiBridge connectors allow reliable connections between printed circuit boards and decentralized functional units. - crimp contact for versatile uses - single and dual row versions - accommodates various cable cross sections - reliable and secure mating - high retention force of the housing latching - double locking of the spring contacts in the housing - shock and vibration resistant - based on VW75174 and USCAR-2 specifications - high temperature resistance - reliable retention force on the PCB Application possibilities of the MaxiBridge connectors from ERNI Wherever space-saving, highly stressed connections have to be implemented, ERNI MaxiBridge connectors offer suitable solutions. One of the most important areas of application is the automotive industry. MaxiBridge connectors can be found, for example, in headlight systems where high temperature resistance and current carrying capacity are required. ERNI's practical and powerful connector systems are also used in battery management systems and the power electronics of modern electric and hybrid vehicles. Other possible applications include air conditioning and ventilation systems, steering systems, seat adjusters and belt tensioners.
