Automatic gluing device ERO-OE

high-pressurecardboard

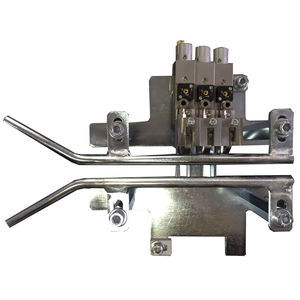

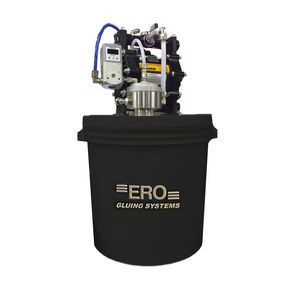

ERO-OE high pressure gluing system has been developed for casemaker/flexo-folder-gluer machines which operate at extremely high speeds. ■ Control panel with automatic function ■ High pressure, double piston ERO® glue pump. ■ High pressure ERO® flow regulator and 2 complete air treatment groups. ■ Electronic digital proportional valve. ■ Encoder kit includes support and pulley, 2 laser photocells, glue filter, glue air hoses, pump support cover and protection. ■ 3 independent GTE-13/M glue valves, equipped with long lasting ceramic nozzles. The station can be upgraded to feature up to 6 glue valves ■ Bucket fitted with non-return valve, low glue level sensor and alarm ■ Super high-speed production ■ Low maintenance, high reliability ■ Increase glue savings by selecting the dot distribution mode ■ Leading technology at a reasonable price ■ Maximum cleaning and precision High Pressure Glue Pump All ERO high-pressure systems are provided with a double-piston glue pump specifically designed for the corrugated cardboard industry. While most piston pumps on the market have a single piston, ERO pump features two. The second piston begins its stroke before the first one has finished, thus avoiding any pressure loss. Control Panel The 8 channel control panel is usually installed directly onto the casemaker. The control panel is very easy to use and is equipped with an automatic function as standard.
