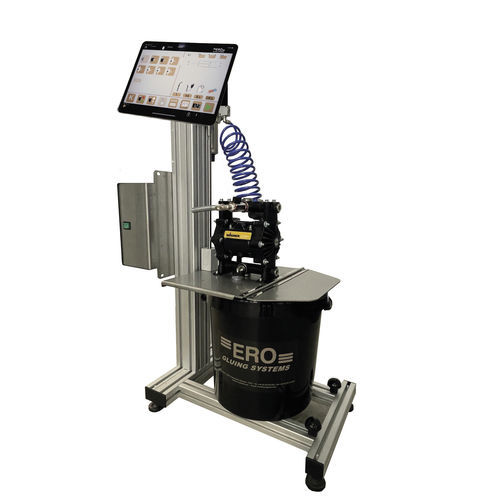

Automatic gluing machine ERO-O

low-pressurenon-contactcardboard

ERO-O low pressure gluing system has been developed to work on casemaker/flexo-folder-gluer machines. All ERO-O systems are equipped with contact distributor type GT-09. ­■ 4-channel automatic function control panel. 8 channel with auto function is available as an upgrade ­■ Low-pressure, double-diaphragm glue pump, directly installed on the glue bucket ­■ Low-pressure flow regulator ­■ Digital proportional valve and complete air treatment group ­■ Complete device optionally equipped with check valve and low glue level alarm ­■ Encoder with support and pulley, laser photo-eye, glue filter, glue air hoses, pump support fitted with sliding device and stainless steel cover ­■ Pneumatic non-contact applicator type GT-09 ­■ Glue bucket with 250 micron glue filter inside ­■ Driver box and software ­■ High-speed production ­■ Excellent reliability & precision ­■ Low maintenance ­■ Easy cleaning ­■ Aluminium structure ­■ Sliding device for easy glue bucket refill Glue Station Designed for flexo-folder-gluer machines, The GT-09 cold glue applicator works by direct contact with the corrugated board. Made of stainless with aluminium alloy head, the complete station is resistant and light. Equipped with either 2/4 exit nozzles or 3 exit nozzles, this pneumatic applicator can be installed on the drive or operator side of the machine, and works top-down or bottom-up. A screw on the head allows glue flow adjustments. Control Devices ERO-O can be monitored from an iPad or a touch screen. ERO control devices either can be installed directly to the machine or be mounted on the structure of the system.
