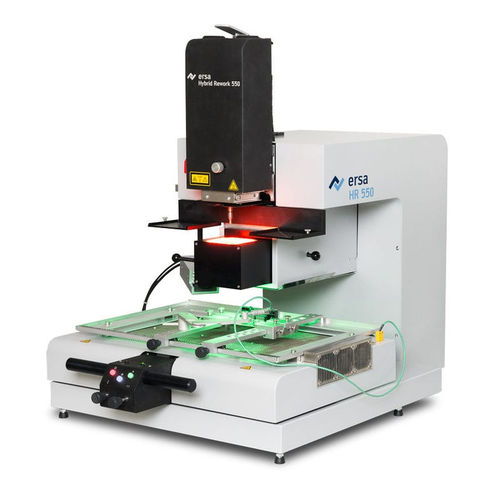

Automatic rework station HR 550

for SMD

Thanks to guided processes, the HR 550 ensures safe rework on the basis of simple and convenient operation. Predicate: visually leading! Highly efficient 1,800 W hybrid heating head Large-area IR bottom heating in 3 heating zones (2,400 W) Integrated vacuum pipette for component removal and placement Highly accurate placement with integrated force sensor Enhanced Visual Assistant (EVA) Computer aided component placement Process control and documentation via software HRSoft 2 Suitable for the use of the Dip&Print Station The Technology of Ersa Rework-Systeme sustainably secures the added value of electronics: gentle heating technology sensor guided soldering processes contactless residual solder removal precise component placement complete process documentation clear user guidance Dimensions (W x D x H) in mm: 573 x 765 x 545/747 (heating head down/up) Weight in kg: 76 Antistatic Design (y/n): yes Power Rating in W: 4.200 Nominal voltage in V AC: 230 Upper heating: Hybrid emitter (900 + 900 W), 70 x 70 mm Lower heating: IR emitter (3 x 800 W), 390 x 270 mm PCB size in mm: up to 400 x 300 mm (+x) up to 520 x 360 mm (+x) (0HR550L) Component size in mm: from 01005 to 70 x 70 Operation: Windows-PC
