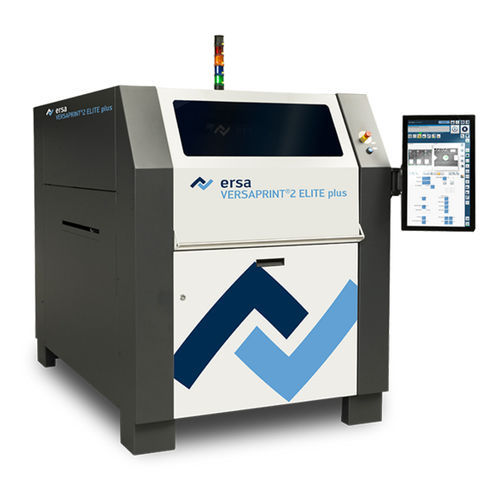

Automatic stencil printer VERSAPRINT 2 ELITE plus

solder pasteSMTcontinuous

ELITE plus is perfectly suited for line production when a 100% inspection is not needed - e.g. because an SPI system already exists in the line - and convinces with its simple operation. Equipped with an surface camera with two separate camera modules. Due to different types of illumination, even difficult structures on the substrate can be recognized. Substrate size (X x Y): min. 50 x 50 mm, max. 680 x 500 mm (inspection area 550 x 500 mm) - Print head: two independent squeegee heads with continuous squeegee force control, squeegee depth stop and pendulum limitation - Cycle time: 10 s + print Optional stencil cleaner: 680 x 500 mm - Squeegee force: 0-230 N - Time to set up: less than 10 min Substrate thickness: 0.5-6 mm - Camera: 3D line scan camera for alignment and inspection of substrate and stencil - Product changeover: under 2 min Part clearance: up to 35 mm - Repetition accuracy: +/-12.5 µm @ 6 Sigma - Graphical user interface: touch screen Stencil size: min. 450 x 450 mm, max. 737 x 737 mm adjustable without tools - Printing accuracy: +/-25 µm @ 6 sigma Proven pneumatic squeegee clamping and adjustable stencil tray Proven overtop clamping Stencil bottom cleaner and surface camera United in efficiency: The VERSAPRINT 2 ULTRA³ is the world's first stencil printer with integrated 3D inspection.
