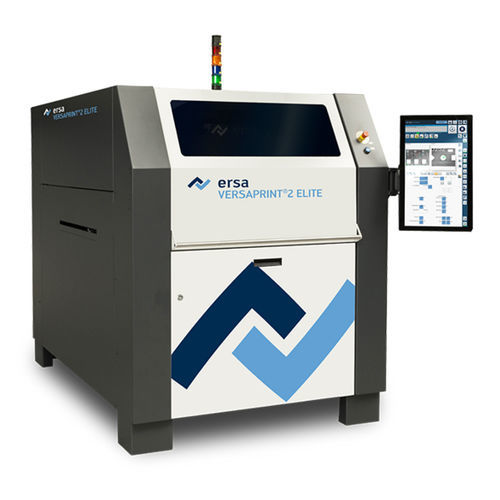

Automatic stencil printer VERSAPRINT 2 ELITE

solder pasteSMTpneumatic

Particularly suitable for high inspection requirements The Model 2 ELITE with fast 2D LIST camera is the perfect printer for line productions that do not require 100% inspection. For example, because an SPI system is already integrated in the line. Convinces all along the line with simple operation, can be upgraded or retrofitted with all options of the VERSAPRINT 2 series. Substrate size (X x Y): min. 50 x 50 mm, max. 680 x 500 mm (inspection area 550 x 500 mm) - Print head: two independent squeegee heads with continuous squeegee force control, squeegee depth stop and pendulum limitation - Cycle time: 10 s + print Optional stencil cleaner: 680 x 500 mm - Squeegee force: 0-230 N - Time to set up: less than 10 min Substrate thickness: 0.5-6 mm - Camera: 3D line scan camera for alignment and inspection of substrate and stencil - Product changeover: under 2 min Part clearance: up to 35 mm - Repetition accuracy: +/-12.5 µm @ 6 Sigma - Graphical user interface: touch screen Stencil size: min. 450 x 450 mm, max. 737 x 737 mm adjustable without tools - Printing accuracy: +/-25 µm @ 6 sigma Proven pneumatic squeegee clamping and adjustable stencil tray Proven overtop clamping Stencil bottom cleaner and surface camera
