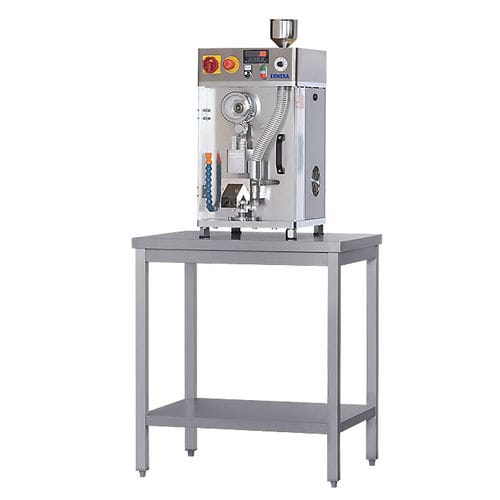

Tablet press EP-1

The EP-1 is the ideal desktop tablet press for R&D purposes. The single punch eccentric Tablet Press EP-1 can manufacture tablets and odd shaped products with a diameter of up to 20 mm. It operates automatically i.e. the die is filled with powder or granule, the material compressed and the tablet ejected continuously. The compression force of up to 3 tons and the filling depth of up to 17 mm are easy to adjust. All components are either covered with hard chrome, or made of stainless steel AISI 304 or acrylic glass for the front door. Frame parts (plates) are made of 1.0332 StW22 and are bright chrome-plated. The throughput is max. 4.000 tablets per hour. Specifications Press speed infinitely variable Max. tablet diameter 20 mm Max. filling depth 17 mm Max. compression force 3 t Dimensions press 425/385/695 mm (L/W/H) Max. tablet output 4.000 tablets/hour Net weight 135 kg Dimensions with attachment parts 503/408/797 mm (L/W/H) Power supply 240V -15%+10%/50-60Hz Electrical load 2.2 kVA Options Configured for your needs. Data transfer option Standard data export via RS232 interface EP-1 single punch tablet press with compression force Support table in stainless steel Single punch and die set, 4.0 mm to 20.0 mm diameter, type STR 1, for round tablets Single punch and die set, 4.0 mm to 20.0 mm diameter, type STS 1, for shaped tablets Transformer for EP-1 (from 230 V to 115 V) IQ/OQ documents EP-1 without compression force
