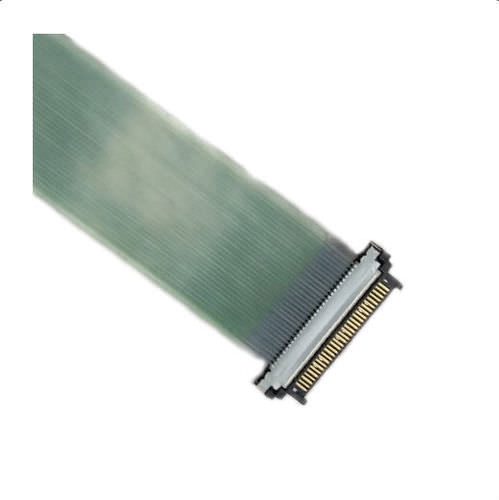

RF cable harness KAB-KEL-USL20-30SS-015.0-BH(D)coaxialfor LCD displaysIDC
Add to favorites
Compare this product
Characteristics
- Cable type
- RF, coaxial
- Applications
- for LCD displays
- Other characteristics
- IDC
Description
KEL cable assembly of the USL series with pitch 0.4 mm, cable especially designed for high speed LVDS applications/LCD display control.
side 1: 30-pin IDC connector, straight with pitch 0,4 mm
side 2: 30-pin IDC connector, straight with pitch 0,4 mm
strands AWG42, Micro-Coax, configruation 1:30
standard cable length L = 150 mm
30 pin. connector, pitch 0.40 mm, bidirectional
extremely small design, counter part on PCB with max. installation height of 1.00 mm
safe screening via metal frame
mechanical detent to avoid vibrations and impacts
the applied cable is a micro-coaxial AWG42
customized solutions on request
