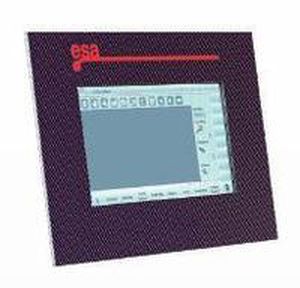

Compact CNC controller S 600 series

touch screen

Compact and economic CNC for shearing machines and simple press brakes. Equipped with a 7” touch screen makes all operations on the machine simpler and intuitive. Can manage up 3 axes and 16+ 12 I/O with an integrated PLC. Storage of thousands of part programs. All kind of shearing technology supported. All press brake technology are managed within the limit of axes and i/o. TYPICAL APPLICATIONS Conventional press-brakes (Mechanical and Hydraulic), Synchro Hydraulic Press-brakes, Servo controlled hydraulic single cylinder press-brakes Hydro-mechanical press-brakes American style Guillotine shears, with 1-3 axes BASIC UNIT EQUIPPED WITH DIMM PC CPU AMD SX-800- 500MHz, 32MB DRAM INCLUDING 7” colour touch screen resolution 800x480 128 MB Silicon Disk. 3 fast counting circuits for Line Drive 0-5Vdc differential encoders or NPN/Push pull. The encoders are powered at 5Vdc (max 200mAper channel). 3 analog outputs(±10V) with 15bits + sign resolution. 2 analog inputs, 12 bits resolution. 2 general purposes analog outputs, 0÷10V (8 bits resolution). 16 digital inputs (24Vdc). 16 digital outputs (24Vdc, 0,7A max.) protected against overload and sh
