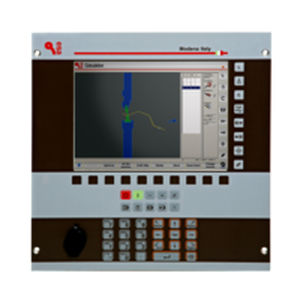

Multi-axis CNC controller S 540

Conventional press-brakes (Mechanical and Hydraulic), synchro Hydraulic press-brakes, servo controlled hydraulic single cylinder press-brakes, electri- cally driven press-brakes Hydro-mechanical press-brakes American style software specifications Interactive 2d graphic editor for work-pieces and tools data entry 2D graphic display of machine frame, work-piece and tools Manual 2D graphic identification of the best bending sequence Programming of the axes positions in tabular mode with automatic syntac- tical checks, automatic calculation of the r, z and A positions and of the bending and crowning tonnage Windows® like user interface Complete off-line programming on a standard pc IEC 61131-3 plc programming language with function utilities either written in il or “c” language, are available for manufacturers Customizable alarm messages GENERAL SPECIFICATIONS FPGA integrated logics, surface mounting, fiber optic Cpu AMD Geode ETX-LX800 500Mhz with 128Mb of RAM Silicon hard disk (flash disk) for more than 30.000 part programs 2 serial ports rs-232 2 usB port for memory stick 1 ethernet port 2 can open port Fiber optic interface Local area network
