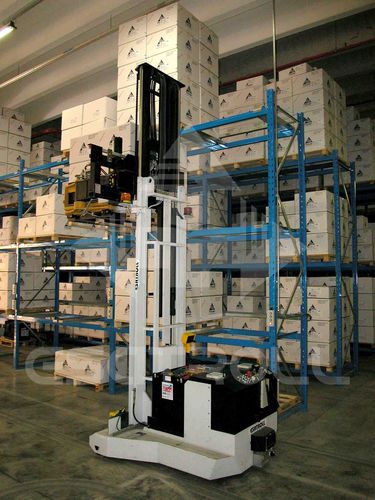

Vehicle with trilateral forks with capacity of Kg 400 - Inertial navigation system
Esalat 400 is a counterweighed vehicle able to move loads up to Kg 500 on trilateral forks.
Max size of the pallet is 1200 x 1200 mm (open or closed pallet). It works on shelves up to 4200mm.
Esalat 400 is equipped with an opportunity recharging device.
Safety sensors : ultrasound (anterior), laser scanner (between forks) and bumpers. Sensors ar present also on the top of the forks.
The supervisor computer controls the whole cycle of production, sendig to the AGV the mission (loading, unloading, picking). After the picking , the pallet has a lower height and therefore is automatically stored in smaller shelves, in order to optimize the spaces.
Technical Characteristics
Lenght : 2800 mm
Width: 1200 mm
Battery : 48 V
Max speed : 1,2 mt/sec
Mast : 4200 mm (from the floor)
Safety sensors : rear laser scanners, anterior ultrasound sensor, lateral bumpers
Capacity : 500 kg
