Analog I/O module 8I/OM12-5P3T
8 PNP outputsIP65

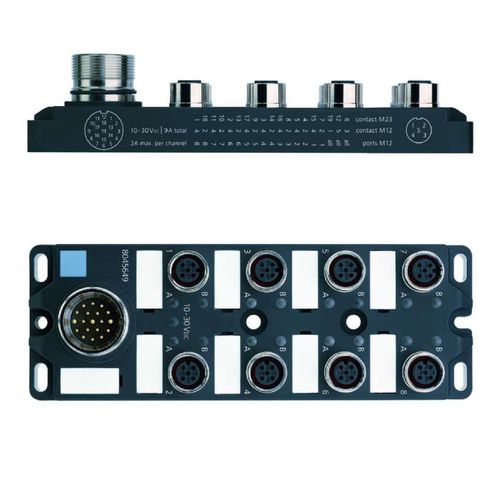

Analog I/O module - 8I/OM12-5P3T  - ESCHA Bauelemente - 8 PNP outputs / IP65
Analog I/O module - 8I/OM12-5P3T  - ESCHA Bauelemente - 8 PNP outputs / IP65
Add to favorites
Compare this product


Characteristics

Signal type
analog
Number of inputs/outputs
8 PNP outputs
Other characteristics
IP65

Description

I/O-junction 8-way, with Connecting plug, M23x1 I/O-slot female, M12x1 Number of pins 4+PE Coding A Rated voltage 30V Current load (at 40°C) 2 A Total current load 12 A Insulation resistance ≥108 Ω Resistance 5 mΩ Ambient temperature product -30°C...+90°C Number of LEDs 17 Number of I/O-slots 8 Circuit logic pnp Signal status-indicator LED YE Operating voltage-indicator LED GN Contact material Metal, CuZn, gold-plated Contact-carrier material Plastic, PA, BK Sealing (female) material FPM/FKM Housing material Plastic, PA, BK Thread insert material Metal, CuZn Connecting type Top Standards IEC 61076-2-101 Degree of protection (mounted) IP65, IP67 Mechanical life-cycle >100 mating cycles Connecting plug M23x1, 19 poles Sealing material, connecting-plug Plastic, FPM/FKM Receptacle housing material, conecting-plug Metal, CuZn, nickel-plated Contact material, connecting-plug Metal, CuZn, gold-plated Contact-carrier material, connecting-plug Plastic, PA, BK Mechanical life-cycle, connecting-plug >100 mating cycles Number of pins, connecting-plug 19 Degree of protection, connecting-plug (mounted) IP65, IP67 Degree of pollution 3
