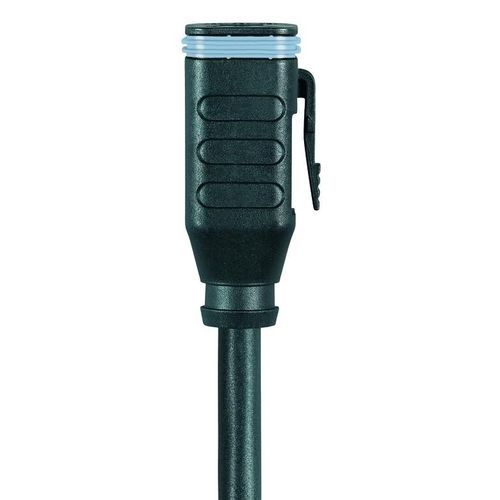

Automation connector MA-ET06-6S-5-MA-ET04-6P/S370dataovermoldedstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- overmolded
- Shape
- straight
- Connection type
- female, male
- Electrical characteristics
- 6-pole
- Material
- silicone, TPU, PUR, metal
- Product applications
- mobile
- Domain
- automation, process, cost-effective, Ethernet network
- Protection class
- IP67, IP68
- Norms
- cULus
- Other characteristics
- flexible, halogen-free, with cordset, double-sided
- Primary current
7.5 A
- Voltage
250 V
- Operating temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description
Connectors in ET design from ESCHA are overmolded in a one-shot process. This means less susceptibility to errors as well as a faster, more reliable and more cost-effective wiring.
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
