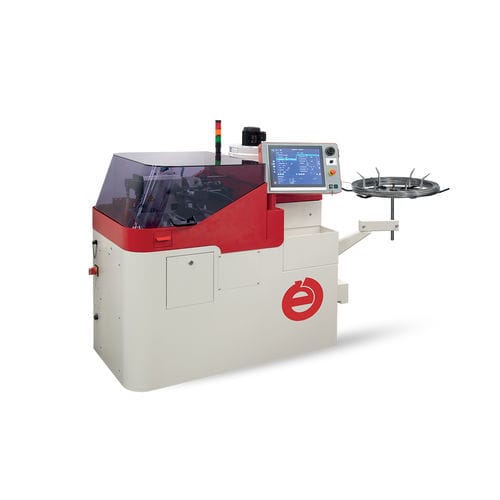

CNC automatic lathe D2

2-axis2-spindledrilling

The escomatic D2 CNC is the revolutionary and innovative evolution of the fastest automatic turning machine for precise and economic manufacturing of simple parts up to 4.0 mm diameter in large and small lot sizes. The basis of the escomatic D5 CNC is identical with the one of the escomatic D2 CNC. Machine base, straightening unit, feed system and rotating tool head are absolutely identical with the D2. On the escomatic D5 CNC the counter collet of the D2 has been replaced by a system for the front machining which consists of a cross table with 2 axes supporting 2 drilling spindles, one threading/tapping spindle and one counter collet with programmable positioning. The CNC control allows for flexible and optimized manufacturing of turned parts without cycle time loss. The advantages of cam driven machines are maintained. The very simple programming system which is based on the experience of operators allows all operators to learn to operate and program the machine within a few hours. APPLICATION PROFILE Parts with very high production, small batches and pilot production Turning operations with two cutting tools Material diameter from 0.3 – 4.0 mm Simple, precise parts Machining from coil for 24 hours production FEATURES Proven escomatic technology with menu guided CNC control system Menu guided programming / set-up and quick process adaption escomatic standard turning tools can be used Tool head speed up to 12’000 RPM Fast cycles and short machining times at enhanced precision Best price / performance ratio for the production of parts with small diameters Improved parts quality, both in meeting tolerances and in surface finish
