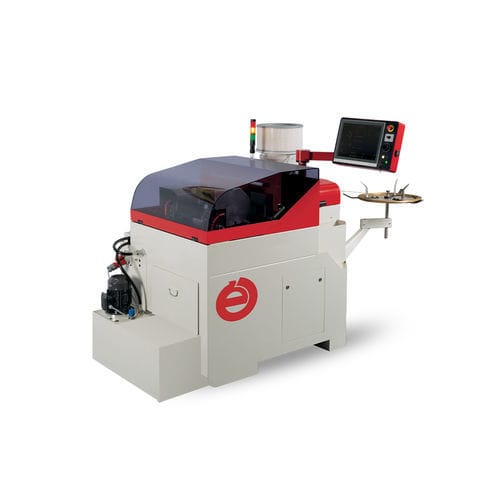

CNC automatic lathe D6 Ultra

8-axis3-spindlefor small workpieces

The escomatic D6 ULTRA has been designed to Evolve with the production. The tool head, which rotates at 12’000 rpm, has 3 turning tools that can be controlled separately as needed to expand the possibilities and simplify the process. It is possible to machine the front and back of the workpiece simultaneously. The DUF front machining unit consists of three axial spindles designed for drilling and tapping in the guide bush. The counter spindle with C-axis and the DUF unit are each mounted on a table equipped with separate CNC axes with a translation speed of 40 m/minute. After cuting off the workpiece, 3 axial spindles and 1 cross spindle can perform secondary machining at a speed of 18’000 rpm (DUAL) to enable high-performance secondary operations. All this is controlled by a easy to use machine-specific Pegasus/Beckhoff CNC control for more flexibility and ease of use. Main benefit Created for the revolution of the production 3 tools for more flexibility Even faster ESCO guiding bush or standard commercial guiding bush Small flor space Low power consumption Technical specifications Maximize the number of operations in one machine Simple turned parts with front and back operations Machining from coils with real work 24-hour continuous lights out operations High volume part series and pilot series Features Choice of escomatic cutting tools or inserts from all tool makers Use of escomatic type guide bushes or commercially available guide bushes Very fast cycle times and reduced machining time with improved accuracy. Improved parts quality, both in meeting tolerances and in surface finish Savings in floor space and manpower due to compact design
